In the evolving landscape of medical device manufacturing, precision and reliability are crucial in creating components that meet stringent regulatory standards and deliver consistent quality. Liquid silicone rubber injection molding (LIM) has emerged as a top choice for producing high-quality silicone parts, offering unique advantages in terms of performance, strength, and cost-effectiveness. With the LIM process, manufacturers can achieve tight tolerances and high-quality finishes that are essential for medical applications.

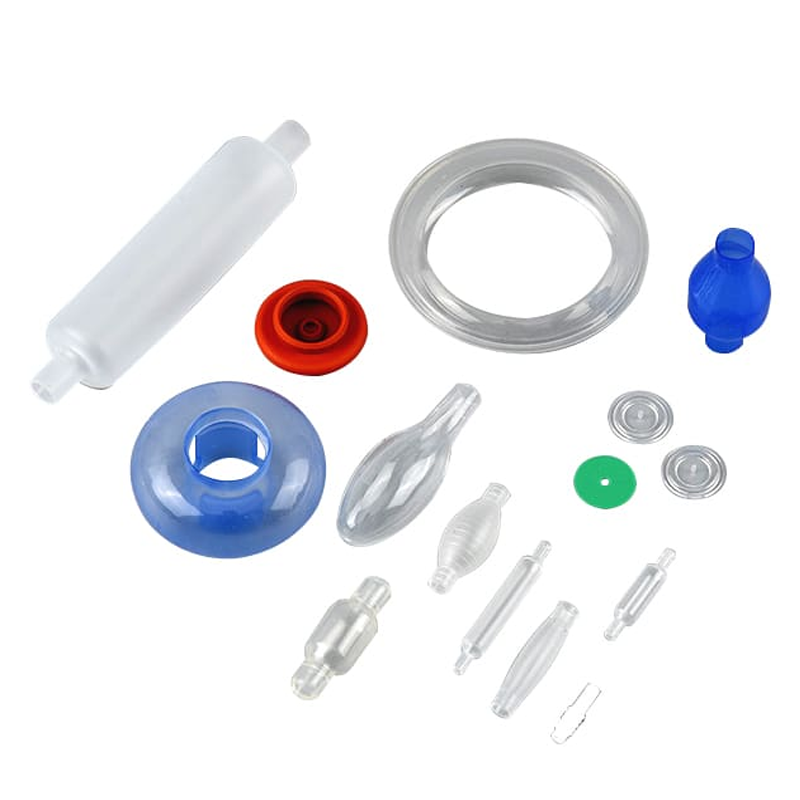

The LIM Process in Medical Manufacturing
Liquid injection molding is a sophisticated process that involves injecting liquid silicone rubber (LSR) into pre-formed molds to create a durable and flexible part. The process requires a specific combination of materials, machinery, and process expertise to produce reliable, biocompatible components for medical use. Compared to traditional thermoplastics and other types of molding, LIM offers benefits that are particularly well-suited for the medical industry, such as biocompatibility, durability, and precise dimensional accuracy.
Medical device manufacturers have several molding processes to choose from, each with unique applications and advantages. Here’s an overview of some common processes in medical device production:
– Transfer Molding: In transfer molding, a hydraulic plunger forces material through runners and gates into cavities, resulting in precise, uniform parts. This process is ideal for both small and high-volume production and is especially useful when molding around metal or plastic inserts.
– Compression Molding: Compression molding involves positioning pre-measured material in each mold cavity and compressing it to conform to the mold. This method is well-suited for large geometric parts and applications that require encapsulation.
– Micro Molding: A specialized form of LIM, micro molding is designed for components requiring extremely small injections (often under 6 grams). It’s commonly used for parts requiring tight tolerances, such as valves and seals in minimally invasive devices.
– Silicone-to-Metal Bonding/Insert Molding: This process involves bonding silicone to metal or other materials, creating strong, durable parts for medical applications. To achieve the best results, inserts are treated before molding to optimize adhesion and prevent movement during the cycle.
– Thermoplastic Injection Molding: In this process, thermoplastic material is heated, injected into a mold, and then cooled to create a finished part. Thermoplastic injection molding offers excellent surface finishes and is commonly used in producing precise, fully functional parts.
– Liquid Injection Molding (LIM): LIM involves injecting LSR into a closed mold, where it cures into the desired shape. This process is efficient, allowing for high-quality production with minimal manual intervention. LIM is especially valuable for creating flexible, durable components that withstand extreme conditions.

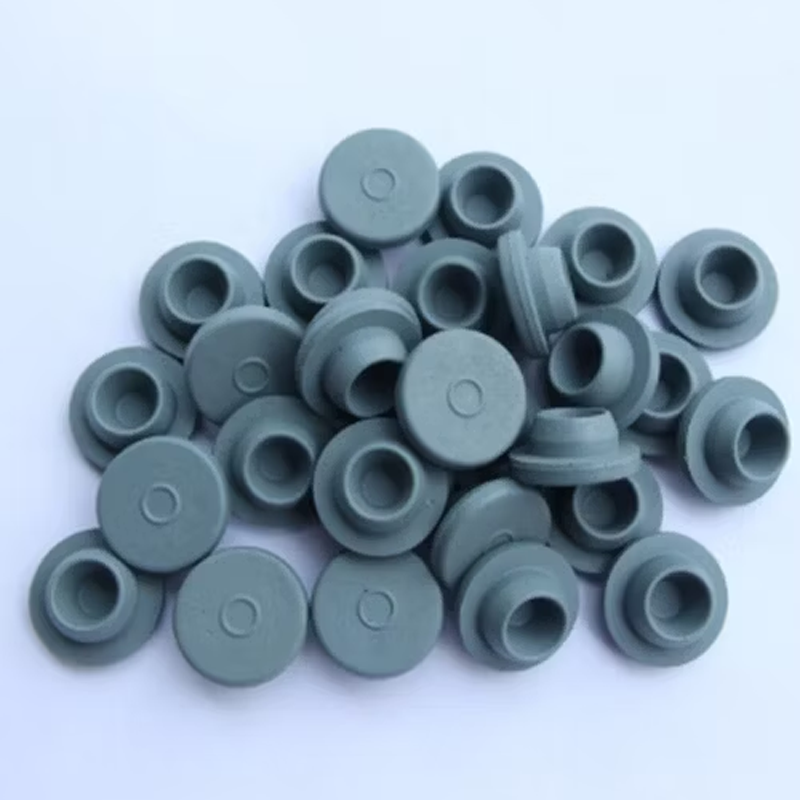

Key Benefits of Liquid Injection Molding for Medical Devices
The benefits of liquid injection molding make it an attractive choice for medical device manufacturers. Here are some of the most significant advantages:
– Exceptional Durability: LIM components made from LSR are known for their long lifespan and stability in extreme temperatures, making them suitable for applications in the automotive and aerospace sectors, as well as medical environments. Unlike thermoplastics, LSR does not melt under high heat and offers flame-retardant and heat-resistant properties, making it reliable in critical applications.
– Strength with Flexibility: Components made from LSR are both flexible and robust, with an impressive ability to stretch up to six times their original length without breaking. This versatility expands the possible applications of LIM across multiple industries, including medical devices where flexibility and resilience are essential.
– Superior Mechanical Properties: LIM is particularly advantageous for equipment with moving parts, providing the necessary cushioning and support to prevent excessive wear. Components produced through LIM offer excellent mechanical strength and longevity, making them ideal for applications that demand reliable and consistent performance.
– Biocompatibility: A significant advantage of LSR is its biocompatibility, making it a safer choice for medical devices that come into contact with the human body. LSR is hypoallergenic and less likely to cause adverse reactions, making it a preferred material for a wide range of medical applications, from implants to diagnostic equipment.
– Precision and Consistency: The LIM process allows for high-precision molding, with tight tolerances that ensure parts meet exact specifications. This accuracy is critical in medical devices, where even minor deviations can compromise functionality or safety. LIM’s ability to produce uniform parts with minimal variation is a crucial factor in achieving regulatory compliance.
– Automation Capabilities and 24/7 Production: LIM is compatible with automated production, allowing manufacturers to run processes nearly 24/7 with minimal human intervention. This automation reduces labor costs and helps maintain consistent quality, an essential factor for medical device manufacturers facing tight timelines and high production demands.

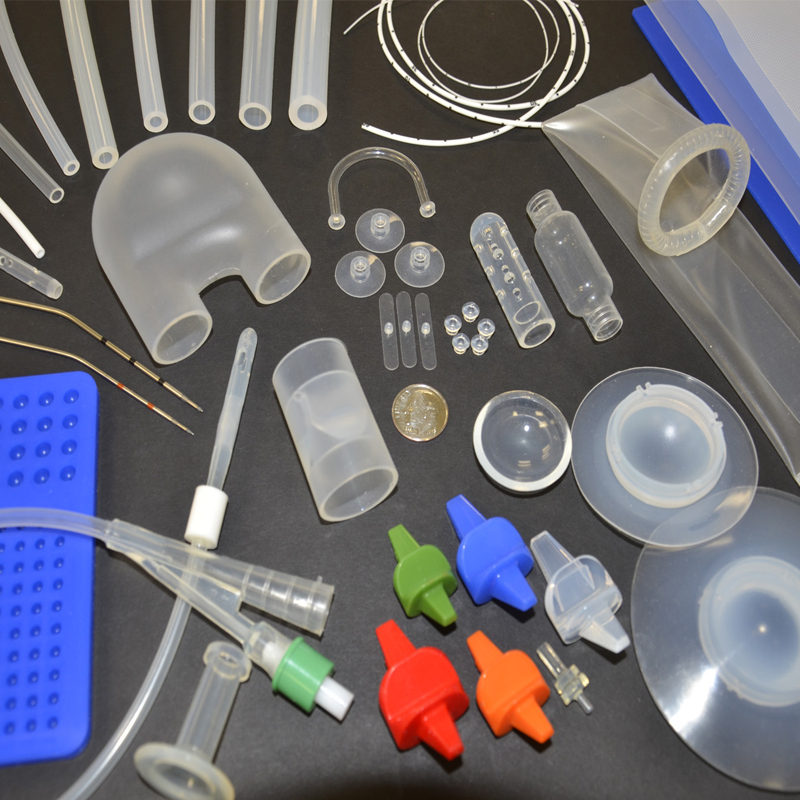

Materials Commonly Used in Liquid Injection Molding
In LIM, the primary material used is liquid silicone rubber (LSR), a synthetic liquid rubber that offers excellent durability, flexibility, and biocompatibility. LSR is platinum-cured, making it an ideal choice for medical applications that require components with a long lifespan and stability. Here are two commonly used materials in LIM:
– Liquid Silicone Rubber (LSR): The most widely used material in LIM, LSR is known for its high durability and biocompatibility. Platinum-cured LSR is safe for use in medical applications, providing resistance to chemicals, heat, and aging.
– Fluorinated Liquid Silicone Rubber (F-LSR): Fluorosilicone enhances chemical resistance, making it suitable for applications where exposure to harsh substances is expected. F-LSR is often used in automotive and precision parts but is also applicable in medical devices requiring chemical resistance.

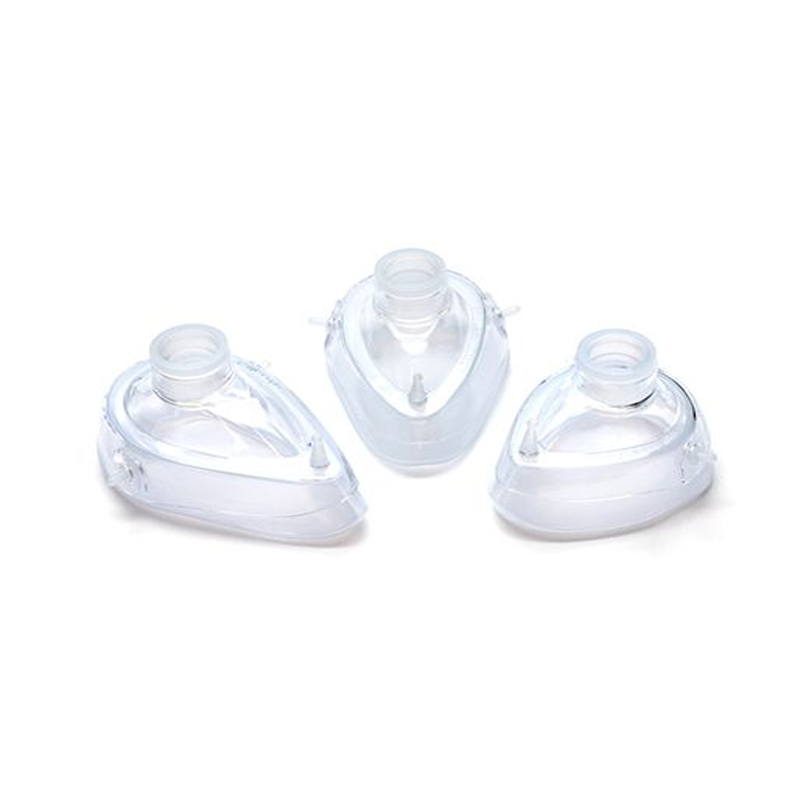

The Liquid Silicone Rubber Injection Molding Process
LIM begins by metering and mixing two components of LSR: one part containing a platinum-based catalyst and the other containing a crosslinker. These components are combined to form a uniform mixture that is then injected into the mold. The LSR remains in a liquid state until it enters the mold, where the heat cures it into a solid form.
LIM equipment typically consists of a metering device, supply drums, a static mixer, and an injection unit. The entire process is optimized to prevent bubbles or leaks, with some applications requiring molds with vacuum-assisted venting to ensure the silicone fully occupies the mold cavity without trapping air. In medical manufacturing, cleanroom environments are often required to prevent contamination.
Design Considerations for Liquid Injection Molding
Several design considerations should be taken into account when planning to use LIM:
– Shrinkage: Unlike thermoplastics, LSR does not shrink while in the mold. However, it can shrink by up to 3% after curing, which needs to be factored into the mold design.
– Air Trapping and Venting: Trapped air can disrupt the molding process, so proper venting is essential to avoid air bubbles. For complex designs, in-mold vacuuming may be used to ensure complete and bubble-free filling.
– Thermal Tearing: The stage at which LSR parts are removed from the mold is critical; improper timing can lead to thermal tearing. This requires careful process control to avoid damage during ejection.
Partnering with a Reliable LIM Manufacturer
Selecting a LIM partner with strong expertise in medical manufacturing ensures components meet all regulatory standards and quality expectations. Look for manufacturers with a deep understanding of LIM and experience working with medical-grade silicone. Certifications such as ISO 9001, ISO 14001, and IATF 16949 demonstrate a commitment to quality and regulatory compliance.
At Siliconepartner, we prioritize rigorous quality control and have the certifications to back our dedication to precision and reliability. Whether you’re seeking durable, biocompatible components or require high-volume production with consistent quality, we offer the expertise and capabilities to meet your needs. Contact us to learn more or request a quote to discuss your project requirements today.
